    High Temp PTFE Coated Fiberglass Fabric Wide Use For Construction

    Ask Lasest Price
    Brand Name : SPEK
    Model Number : S9090AJ
    Price : 30~800usd
    Supply Ability : 100000 square meters per month
    Delivery Time : 2-10working days
    • Product Details
    • Company Profile

    High Temp PTFE Coated Fiberglass Fabric Wide Use For Construction

    Product Description

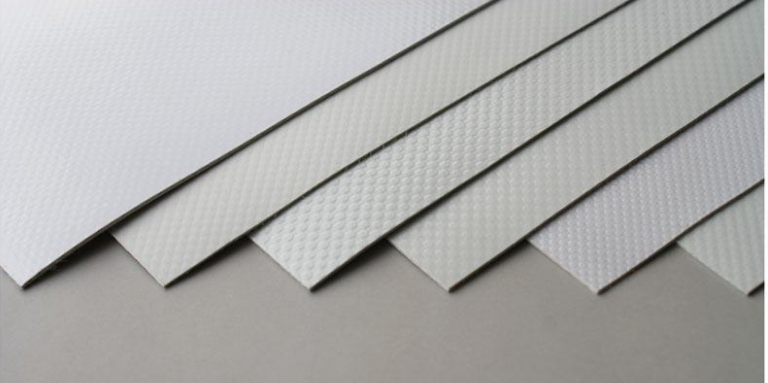

    Based on high-quality fiberglass basic cloth, to coat PTFE resin then making it into various PTFE high temperature resistance clothes in different thickness and width.Fiberglass fabric coated with PTFE has various good capability and it is widely used in aircraft industry, paper manufacture, food, environment protection, print and painting, costume, chemical, glass manufacture, medical, electronic, insulation, building (basic cloth of topping frame), sharpener slice, machinery, etc.

    Property:
    1, Good temperature resistance
    It can be used under the temperature of -140 to 260, which has the capability of weather resistant and age resistant. Under practical situation of high temperature of 250 for 200 days, not only the intensity will not decrease, the weight will not reduce; If putting it under the high temperature of 350 for 120 hours, the weight only decreased by about 0.6%; Under the situation of -180, it will not be chapped and keep the original pliability;
    2. Non stickness,
    Hardly to adhere any material; It is easy to wash away the blot or other dust such as resin, coating material, etc.
    3. Chemical corrosion resistant
    It could resist acid, alkali, aqua fortis and various kinds of organic liquid corrosion; And it almost to resisting all kinds of medicament.
    4, Stable dimension, high intensity, elongation coefficient less 5%.
    5, Low coefficient of friction and dielectric constant,good insulating ability.
    Application:

    1) The designer can create large span extreme surface arc, cone, changeful iconic grand landscape shape of membrane structure buildings. Novel
    PTFE fiberglass permanent architectural membrane material can be used in construction of large public activity place, stadiums, exhibition venues, and the lounge at the airport, etc.

    2) PTFE membrane material is a kind of high polymer composite material, has excellent mechanical properties like outstanding patience, good winding strength, and reasonable structure design, is better than the strength of steel. PTFE membrane material construction usually can last more than 50 years.

    3) Self-cleaning with superior performance of non-stick, decades later it still keep white surface as pervious.

    4) As construction period is short, fabric cutting, seam welding, machining, can be made in one factory, which greatly reduce the construction work site and construction time.


    Styles and Specifications:

    ItemColorThicknessMax WidthWeightTensile StrengthTemperature resistance
    S908AJbrown0.08mm1.25m165g/㎡550/450N/5cm-140~260℃
    S908BJblack0.08mm1.25m170g/㎡550/450N/5cm-140~260℃
    S913AJbrown0.13mm1.25m260g/㎡1100/1000N/5cm-140~260℃
    S913BJblack0.13mm1.25m275g/㎡1100/1000N/5cm-140~260℃
    S915AJbrown0.15mm1.25m380g/㎡1200/1000N/5cm-140~260℃
    S918AJblack0.18mm1.25m395g/㎡1800/1700N/5cm-140~260℃
    S925AJbrown0.25mm3.20m490g/㎡2100/1800N/5cm-140~260℃
    S925BJblack0.25mm3.20m510g/㎡2100/1800N/5cm-140~260℃
    S935AJbrown0.35mm3.20m660g/㎡2600/2300N/5cm-140~260℃
    S935BJblack0.35mm3.20m680g/㎡2600/2300N/5cm-140~260℃
    S940AJmilk white0.40mm3m780g/㎡3000/2500N/5cm-140~260℃
    S940BJblack0.40mm3m820g/㎡3000/2500N/5cm-140~260℃
    S965AJmilk white0.65mm3m1150g/㎡4400/4000N/5cm-140~260℃
    S990AJmilk white0.90mm3m1550g/㎡6000/5000N/5cm-140~260℃
    S990BJblack0.90mm3m1650g/㎡6000/5000N/5cm-140~260℃
