High Temperature Ptfe Coated Glass Fibre Fabric Chemical Resistance

Ask Lasest Price
Brand Name :	SPEK
Model Number :	S9025AJ
Price :	30~800usd
Supply Ability :	100000 square meters per month
Delivery Time :	2-10working days

Add to Cart

Product Details
Company Profile

High Temperature Ptfe Coated Glass Fibre Fabric Chemical Resistance

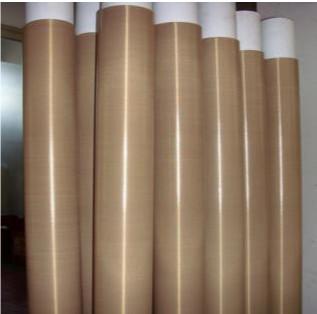

PTFE Coated Fiber Glass Fabrics

PTFE itself is a highly versatile product with well know remarkable properties and fiberglass is well known as an excellent material in terms of its high temperature resistance and dimensionally stability. Combination of these two materials gives one product of practically unsurpassed utility and value with following properties:

Properties

High release from sticky materials 'Non stick' smooth surface
Operating temperature range -140 ℃ to +260 ℃
Excellent chemical resistance
High electrical insulative and dielectric properties
Dimensional stabilities under heat and pressure
Low electrical losses
Mildew and fungus resistance
Ultra-Violet, infra-Red, Micro-wave, radio frequency resistance

Selected woven glass fabrics are coated with PTFE resin. It is available with a surface profile that ranges from super smooth with a high PTFE content to one that is textured. It can be produced with a controlled porosity or with special electrical characteristics. It is utilized in sheet form, in slitted rolls, fabricated pieces and as the base material for process conveyor belts.

Higher width fabric is also available on request.

Item	Color	Thickness	Max Width	Weight	Tensile Strength	Temperature resistance
S908AJ	brown	0.08mm	1.25m	165g/㎡	550/450N/5cm	-140～260℃
S908BJ	black	0.08mm	1.25m	170g/㎡	550/450N/5cm	-140～260℃
S913AJ	brown	0.13mm	1.25m	260g/㎡	1100/1000N/5cm	-140～260℃
S913BJ	black	0.13mm	1.25m	275g/㎡	1100/1000N/5cm	-140～260℃
S915AJ	brown	0.15mm	1.25m	380g/㎡	1200/1000N/5cm	-140～260℃
S918AJ	black	0.18mm	1.25m	395g/㎡	1800/1700N/5cm	-140～260℃
S925AJ	brown	0.25mm	3.20m	490g/㎡	2100/1800N/5cm	-140～260℃
S925BJ	black	0.25mm	3.20m	510g/㎡	2100/1800N/5cm	-140～260℃
S935AJ	brown	0.35mm	3.20m	660g/㎡	2600/2300N/5cm	-140～260℃
S935BJ	black	0.35mm	3.20m	680g/㎡	2600/2300N/5cm	-140～260℃
S940AJ	milk white	0.40mm	3m	780g/㎡	3000/2500N/5cm	-140～260℃
S940BJ	black	0.40mm	3m	820g/㎡	3000/2500N/5cm	-140～260℃
S965AJ	milk white	0.65mm	3m	1150g/㎡	4400/4000N/5cm	-140～260℃
S990AJ	milk white	0.90mm	3m	1550g/㎡	6000/5000N/5cm	-140～260℃
S990BJ	black	0.90mm	3m	1650g/㎡	6000/5000N/5cm	-140～260℃
