3 layers co-extrusion plastic stretch film extruder machine

    Buy cheap 3 layers co-extrusion plastic stretch film extruder machine from wholesalers

    Buy cheap 3 layers co-extrusion plastic stretch film extruder machine from wholesalers
    • Buy cheap 3 layers co-extrusion plastic stretch film extruder machine from wholesalers

    3 layers co-extrusion plastic stretch film extruder machine

    Ask Lasest Price
    Brand Name : SPEK
    Model Number : 55/80/55*1250
    Certification : ISO14009001 /SGS/CE/CCC
    Price : 3000~100000usd
    Supply Ability : 20sets per month
    Delivery Time : 30-50working days
    • Product Details
    • Company Profile

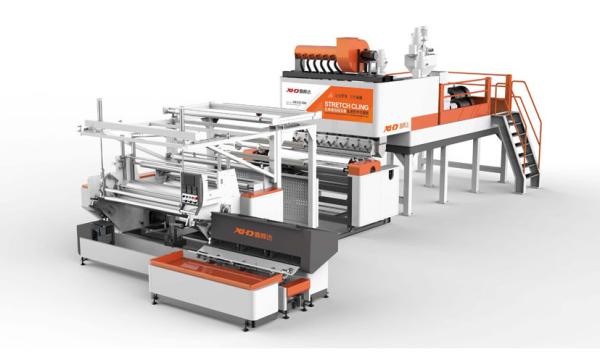

    3 layers co-extrusion plastic stretch film extruder machine

    Features of pallet cast stretch film machine


    1) Higher output with stable quality stretch film, superior than the same suppliers more than 30%.


    2) Higher speed with good ideal tensile and anti-pricking stretch film, which ensure the bigger output.


    3) Power saving and good plasticization which can save 1/3 power among the same model machine.


    4) Good water cooling effect and imported die steel to make sure making even and good ductility

    stretch film.


    5) Swing system installed to adjust the film thickness and evenness.


    6) The alloy screw adopts special mixing function and high plasticizing design which combine import

    static mixer to ensure plasticization is great, color is uniform and increase extrusion capacity greatly.


    7) Auto PLC controlled, Auto cutting & rewinding, fully automatic.


    8) Bottom price with best WHOLE LIFE after sales service.


    Finished Products of pallet cast stretch film machine

    It is a very good kind of packaging material mostly used in the industrial field, port pallet packaging, building material packaging, hardware packaging etc. It enjoys the following advantages:

    1) Good tensile strength.

    2) Superior anti-pricking ability.

    3) High transparency.

    4) Good ductility and anti-impact strength.

    5) Stable sticky sides etc.


    Model Number
    55/80/55*1250
    Products Thickness0.012-0.05mm
    Screw Diameterɸ55*80*55mmCapacity100-180kg/h
    Screw L/D30:1Layer StructureAB/ACBCA
    Screw Speed50-150rpmMachine Weight9.5T
    Products Width1000/2*500mmDimension(L*W*H)8500*3200*3000

    Structure of film

    layers

    3layersOutput3.5-3.8T/24H
    Cooling temperature18-25 degreeExtruded Capacity80-150kg/h

    Quality 3 layers co-extrusion plastic stretch film extruder machine for sale
