Aluminum Alloy Profiles Flood Barrier

description of products

This product is composed of two parts of flood control baffle and mechanical transmission,the normal state is closed water blocking, there are people and vehicles in and out ,through the manual control panel or remote control panel or remote control to realize the rise and fall of flood control baffle ,good sealing performance ,strong pressure resistance.

single chip size : (height*thickness*wall thickness) 215MM*50MM*2.2MM

Yield strength ≥ 110MPA

Strength of extension: ≥160MPA (MPA)

Border material : 6063--T5 Aluminum alloy extrusion molding,the surface using sand blasting, ,electrophorsis, oxidation treatment.

Border size: (Length*width*thickness) 103MM*78MM*6MM

Sealing material : Baffle joints are provided with card slots and EPDM waterproof sealing strips. The baffke plate that is in direct contact with the ground is provide with 25 thicker waterproof rubber strips . Both ends of the baffle plate are provided with sealing covers,which are integrated mold forming to prevent dirt from entering the hollow parts.

ground material : 304 stainless steel

specification(height*width*wall thickness): 60MM*50MM*1.5MM

measurement mode

Steps for removing flood baffle

Practical case

Patent security

Range of application

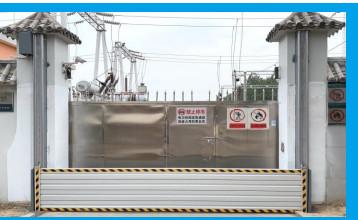

It is suitable for unattended substation, garage entrance and other places with flood and explosion prevention needs.
