Aluminum Alloy Profiles Flood Barrier

description of products

This product is made of 6063 T5 aluminum alloy material , extrusion of aluminum alloy profiles, the thickness of aluminum profiles 2.3mm. The surface electrophoresis oxidation treatment ,each baffle plate and baffle place is equipped with a bearing head combined,and EPDM waterproof strip. EPFM water proof strips with a height of more than 4cm and a height of more than 2cm are arranged at the bottom of the water baffle and the waterfproof effeft is more than 99%.

single chip size : (height*thickness*wall thickness) 215MM*50MM*2.2MM

Yield strength ≥ 110MPA

Strength of extension: ≥160MPA (MPA)

Border material : 6063--T5 Aluminum alloy extrusion molding,the surface using sand blasting, ,electrophorsis, oxidation treatment.

Border size: (Length*width*thickness) 103MM*78MM*6MM

Sealing material : Baffle joints are provided with card slots and EPDM waterproof sealing strips. The baffke plate that is in direct contact with the ground is provide with 25 thicker waterproof rubber strips . Both ends of the baffle plate are provided with sealing covers,which are integrated mold forming to prevent dirt from entering the hollow parts.

ground material : 304 stainless steel

specification(height*width*wall thickness): 60MM*50MM*1.5MM

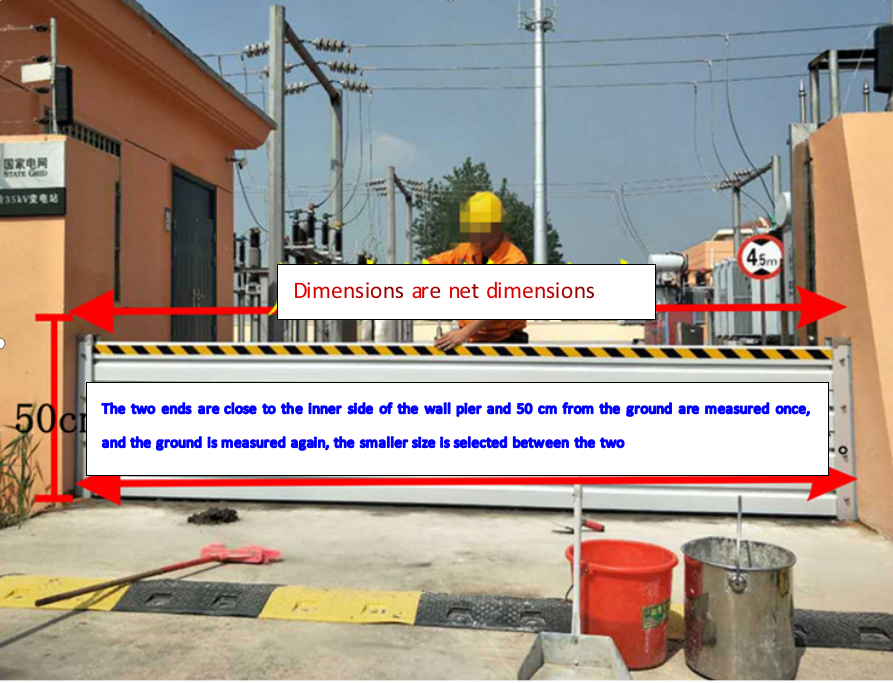

measurement mode

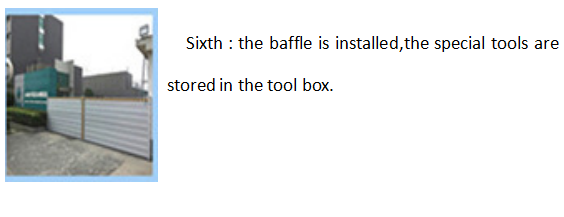

Steps for removing flood baffle

Practical case

Patent security
