The specialists for finishing armholes:

The machines 688 perferctly round off the sleeve production.

The 688 allows the attaching and simultaneous trimming of the body lining and shoulder pads.

The workstation are characterized by their ergonomically optimized workpalce design. In the gripping area of the operator, a 6-function key bar for quick access is located. The knee switch is used to call preseted modes for activating the stitch loosening ,second stitch length and second foot stroke.The shaped table top offers maximum comfort of operation for the processing of large parts. For productions in shift work, height-adjustable stand set is recommended ,which improves the ergonomics for different iperators.

Performance examples of 680 in 480 min:

280-340 Body lin ings

400-460 Pairs of sleeve heads/ wadding strips

230-275 Pairs of ironed shoulder pads

Baste ironed shoulder pads

With a max stitch length of 9mm. the shoulder pads are basted into the armhole. Thus the volume of the shoulder pad remains unaffected

The switchable stitch loosening device prevents

squeezing when the shoulder pad is sewn through. Thus,the pad retains its volume and soft touch

The fullness value is mechanically adjustable and depending on hte application-it can be switched on in the upper or lower fabric by push button

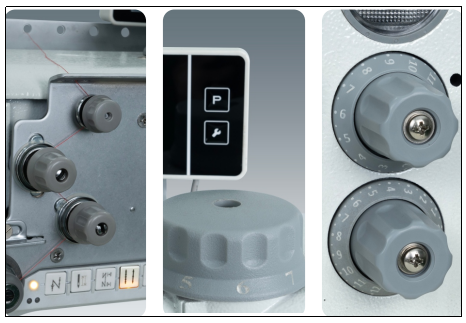

Znd thread tension, 2nd foot stroke and 2d stitch length are switchable manually or automatically. A safe sewing start with low theread tension will be achieved by means of 2nd thread tension an in combination with stitch consensing

An automatic winding aid on the bobbin winder is included in the basic equiment of the machine . It is used for the safe and easy winding of the thread

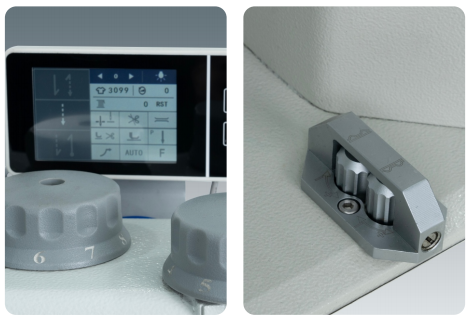

6-function key bar with quick access and favorite key for the functions: Fullness on top, fullness on bottom, 2nd foot stroke,length, automatic material thickness detection, edge trmmer ON/OFF

The pneumatic edge cutter of the 680 can be easily switched on and off via a function key . Cutting widths of 6.4mm,8mm and 10 mm can be realized in combination with stitch lengths of 6 or 9mm

The stand set with ergonomical ly shaped table top achieves the highest degree of workstation optimization.
